MB-D35 Automatic Single PE Coated Paper Bowl Machine

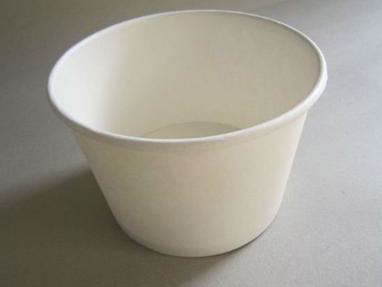

Automatic single PE coated paper bowl machine is also called automatic single PE coated paper bowl forming machine. It is an automatic machine with multi-working station, which has functions of photocell detection, failure alarm, counting and the advantages of humanism design, safer operation and easier maintenance. This paper bowl making machinery is mainly used for manufacturing single PE coated paper bowls after running a set of procedures including automatic printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing, silicone oil lubricating, bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top rolling and bowl discharging. MB-D35 automatic single PE coated paper bowl forming machine is an ideal device for making paper soup bowls, noodle bowls, large food containers, and so on. The main parts of this paper bowl making machinery consists of Maanshan steel (triangle iron, channel steel) sprocket, chain, rod, cam, bearing, gearbox, motor, automatic speed control inverter, etc. The electrical components use CHNT brand. Mingbo uses wooden cases for sea transportation.
1. MB-D35 single PE coated paper bowl forming machine has passed tensile testing and dynamic balancing test, which ensures stability of the mechanical operation.
2. The paper bowl making machinery enjoys photoelectric detection, fault alarm, counting and other functions to ensure better mechanical efficiency.
3. This paper bowl forming equipment features easy operation, stable performance and high efficiency.
For the maintenance of this single PE coated paper bowl forming machine, the mechanical moving parts should be added some engine oil every day, while butter-grease every 15 days. All screws and chains must be checked carefully and locked tightly. When the paper bowl making machinery is working, it is forbidden to be close to it.
Parameters of MB-D35 Single PE Coated Paper Bowl Forming Machine
|Specification||20 to 35 oz (mould could be changed to different sizes), height up to 110 mm|
|Paper Material||140 to 260 gsm, Single PE Coated Paper|
|Production Speed||35 to 40 pcs/m|
|Power Supply||380 V, 50Hz|
|Total Power||6 kW|
|Overall Dimension||2800 mm × 1200 mm × 1600 mm|
|Air Source||0.6 Mpa, 0.6 cbm/min|
Note: We can produce special sizes of paper bowl machines according to customers’ requests.
Ruian Mingbo Machinery Co., Ltd. is a professional manufacturer of single PE coated paper bowl forming machines in China. In addition to paper bowl making machinery, our company also offers paper cup machine, paper bucket machine, paper plate machine, die cutting machine, cup lid machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
