ZKT-09 Double Wall Paper Cup/Bowl Machine
Description

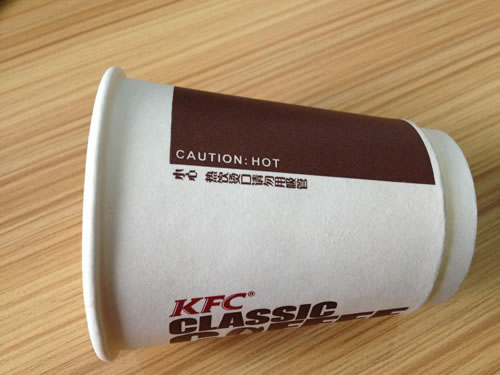

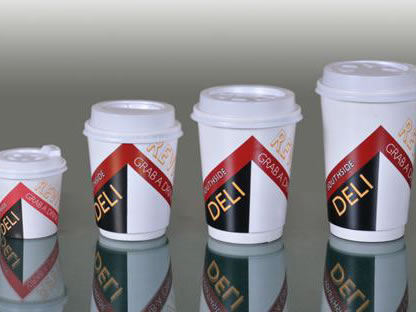

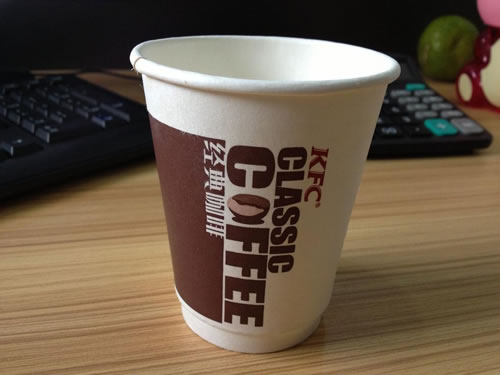

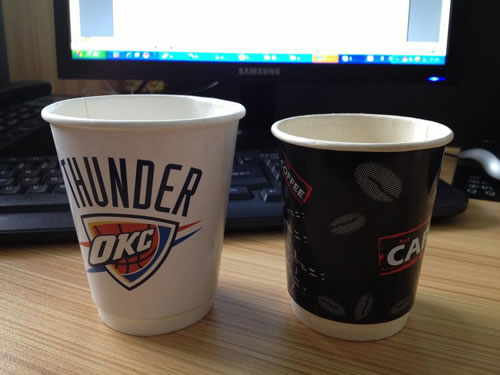

ZKT-09 double wall paper cup machine (bowl machine) is an automatic device with double wall sleeves over the inner cup or bowl. It adopts frequency control, molding and sleeve processing to achieve high-speed production. When drinking hot water, coffee or eat hot noodles, one wall paper cups or bowls become very hot. In order not to hurt the hand by hot drinks, this paper cup sleeve machinery can make a sleeve to protect hand from harm. It has functions such as photocell detection, failure alarm, counting, and so on. Double wall paper cup machine (bowl machine) is an ideal equipment for making double wall paper cups or bowls (such as hollow-sleeve cups) after running a series of procedures (automatic paper feeding, sleeve-cone-body sealing, water-glue spraying, cup or bowl feeding, inserting and bonding sleeve to the cup or bowl, collecting, etc). The main part of this paper cup sleeve machinery includes ultrasonic system, gear box, quenching cam, speed reducer and motor.
Specification
Double wall paper cup machine features stable performance, easy and safe operation and convenient maintenance.
Packaging and Transportation:
We use wooden cases to package this paper cup sleeve machinery, which is convenient for sea transportation.
Parameters of ZKT-09 Double Wall Paper Cup Machine
| Specification | 8 to 35 oz |
| Material | 200 to 350 gsm |
| Speed | 50 to 65 pcs/min |
| Power Source | 220V or 380V |
| Total Power Consumption | 2.5 kW |
| Weight | 1000 kW |
| Dimension | 2500 mm × 1200 mm × 1500 mm |
Lantytk® Corp. is a professional manufacturer of double wall paper cup machines in China. In addition to paper cup sleeve machinery, our company also offers paper cup machine, paper bucket machine, paper plate machine, die cutting machine, paper bowl machine, flexo printing machine, etc. Our products have been exported to Jordan, Algeria, Qatar, India, Indonesia, Taiwan, Libya, Russia, and so on.
