MB-400 Medium Speed Paper Plate Machine
MB-400 intelligent medium speed paper plate machinery is a new product developed by our company in accordance with the market need. This paper plate making machine possesses functions of fully automatic pneumatic suctioning paper or feeding paper, heat molding, automatic dish discharging, thermostatic control, automatic counting, and so on. Medium speed paper plate forming machine is appreciated for unmatched quality, incredible performance, resistance to corrosion and durability. With two working stations and two molds, this paper plate making machine can produce two sizes of paper plates at the same time.

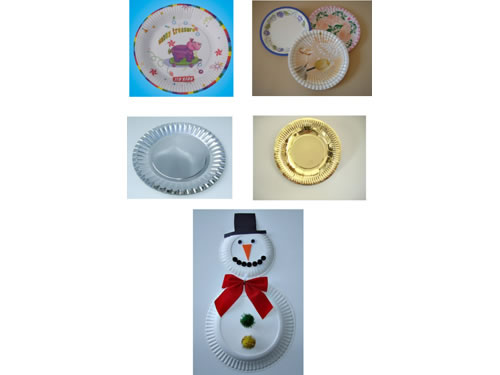

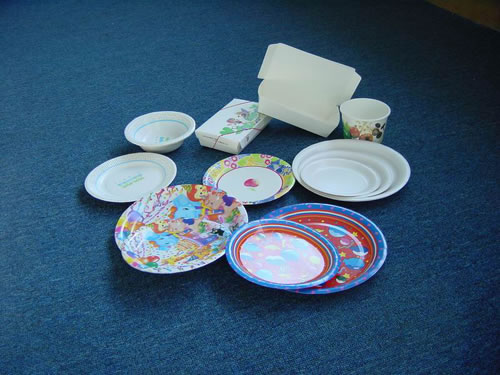

MB-400 medium speed paper plate machinery is widely used in many fields. This paper plate forming machine is extensively applicable for producing paper or aluminum foil coated paper plates. Mingbo can provide various specifications of paper plates or paper dishes through changing moulds.
Advantages of Mingbo Medium Speed Paper Plate Making Machine
1. MB-400 medium speed paper plate machinery adopts high-efficiency pressurized cylinder, which makes pressure reach up to 5T.
2. The paper plate forming machine enjoys advantages of high speed, environment protection, humanism design and high efficiency.
3. Paper plate making machine makes use of the combination of pneumatic and mechanical principles, which makes it possess higher production speed, more stable performance, safer operation, more convenient maintenance, etc.
4. Medium speed paper plate forming machine is packed with wooden cases for sea transportation.
Parameters of MB-400 Medium Speed Paper Plate Making Machine
|Plate Specification||5 to 11 inch (mould exchangeable)|
|Material||100 to 500 gsm, paper, paperboard, PE coated paper|
|Production Speed||60 to 80 pcs/min, total two working stations|
|Power Supply||220 V, 50 Hz|
|Total Power||3 kW|
|Overall Dimension||1430 mm × 1600 mm × 1900 mm|
|Air Pressure||0.8 Mpa, 1.5 cbm/min|
Note: Mingbo is available to make any special size of paper plate forming machines using different moulds
